1. High performance CNC system control feeding. The board is smooth, with high productivity.
2. The feeding system adopts the screw and screw nuts. The screw nuts adopt the magnesium aluminum alloy, copper and other materials. So it is with long service life.
3. Automatic adjustment of cutting system, skin is much more uniform and smooth. Apply to woods with different diameters.
4.During the rotary cutting production, the machine can adjust the thickness of two kinds of veneer constantly and won't cause the crack of the veneers.
5.Block type screw and slider, high-precision and energy-saving.
6. The NC rotary and leather cutting are in one, so the machine is with high productivity and labor-saving.
Max peeling length
Max peeling diameter
Core diameter of remaining
Advantage of Our Veneer Peeling Machine
Emerson Inverter, CNC Control
Servo Motor, More Precise
Hydraulic Blade Lifting, Easy to Change Knife
Taiwan Copper Screw Nut, More Durable
Hardened Gear Reducer
Dovetail Tail Structure. It is Up, Down, Left , Right side balance.
Related Machine in Veneer Peeling Line
Heavy Duty Log Debarker:
Max. Peeling Diameter: 500mm
Max. Peeling Length: 1400mm
Total Power: 24KW
Total Weight: 4200KG
Overall Dimension: 3000*2200*1380mm

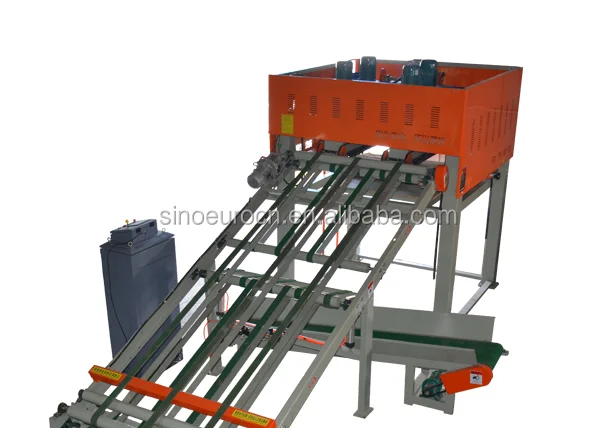

Vacuum Core Veneer Stacker:
Stacking Width: 400-1300mm
Stacking Thickness: 1-5mm
Stacking Height: 1200mm
Total Power: 20.35KW
Total Weight: 2400KG
Overall Dimension: 8000*2040*2750mm
Packaging & Shipping
1*40HQ for Log debarker, Veneer peeling machine and Knife grinder
1. All kinds of mold can be made by customer's requirements
2. All price are based on FOB, QINGDAO, China
3. Payment: by T/T 30% down payment, 70% upon machinery completion. 4. Delivery: After finishing all the payment 5. All the parameters above just for reference, for they are updating all the time
6. Package: Standard packing
7. Warranty: All the machine enjoys one year’s warranty, in this period. Any problems of machine, please feel free to contact us. We will try our best to make it.
