8ft heavy duty plywood veneer peeling machine
8ft heavy duty plywood veneer peeling machine

8ft heavy duty plywood veneer peeling machine

USD 19,000.00-29,000.00 / set
Minimum order quantity:
1 set
Supply Ability:
25.0 set / Month
Country of Origin:
  • Max peeling diameter:500mm
  • Peel speed:40-80m/min
  • venner thickness range:0.5mm-5.0mm
  • Max peeling length:1300mm
  • Power of double roller:11kw*2
  • Power of single roller:11kw*2
  • Bottom structure:8mm(Steel)
  • Feeding motor:11kw servo motor
  • Cutting motor:3.6kw servo motor
  • Long-range control:Have
  • Condition:New
  • Applicable Industries:Hotels
  • Applicable Industries:Garment Shops
  • Applicable Industries:Building Material Shops
  • Applicable Industries:Machinery Repair Shops
  • Applicable Industries:Manufacturing Plant
  • Applicable Industries:Food & Beverage Factory
  • Applicable Industries:farms
  • Applicable Industries:restaurant
  • Applicable Industries:HOME USE
  • Applicable Industries:Retail
  • Applicable Industries:Food Shop
  • Applicable Industries:Printing Shops
  • Applicable Industries:Construction works
  • Applicable Industries:Energy & Mining
  • Applicable Industries:Food & Beverage Shops
  • Applicable Industries:Advertising Company
  • Applicable Industries:Furniture factory
  • Warranty:1 YEAR
  • After-sales Service Provided:Field installation, commissioning and training
  • Key Selling Points:High-accuracy
  • After Warranty Service:Video technical support
  • After Warranty Service:Online support
  • After Warranty Service:Spare parts
  • After Warranty Service:Field maintenance and repair service
  • Local Service Location:Egypt
  • Local Service Location:canada
  • Local Service Location:turkey
  • Local Service Location:UNITED KINGDOM
  • Local Service Location:United States
  • Local Service Location:ITALY
  • Local Service Location:france
  • Local Service Location:GERMANY
  • Local Service Location:VIET NAM
  • Local Service Location:philippines
  • Local Service Location:brazil
  • Local Service Location:peru
  • Local Service Location:SAUDI ARABIA
  • Local Service Location:indonesia
  • Local Service Location:pakistan
  • Local Service Location:INDIA
  • Local Service Location:Mexico
  • Local Service Location:RUSSIA
  • Local Service Location:spain
  • Local Service Location:Thailand
  • Local Service Location:japan
  • Local Service Location:malaysia
  • Local Service Location:Australia
  • Local Service Location:Morocco
  • Local Service Location:kenya
  • Local Service Location:argentina
  • Local Service Location:South Korea
  • Local Service Location:CHILE
  • Local Service Location:UAE
  • Local Service Location:Colombia
  • Local Service Location:algeria
  • Local Service Location:Sri Lanka
  • Local Service Location:Romania
  • Local Service Location:BANGLADESH
  • Local Service Location:south africa
  • Local Service Location:KAZAKHSTAN
  • Local Service Location:UKRAINE
  • Local Service Location:kyrgyzstan
  • Local Service Location:uzbekistan
  • Local Service Location:Tajikistan
  • Showroom Location:turkey
  • Showroom Location:VIET NAM
  • Showroom Location:philippines
  • Showroom Location:brazil
  • Showroom Location:peru
  • Showroom Location:indonesia
  • Showroom Location:pakistan
  • Showroom Location:INDIA
  • Showroom Location:Mexico
  • Showroom Location:RUSSIA
  • Showroom Location:Thailand
  • Showroom Location:Morocco
  • Showroom Location:argentina
  • Showroom Location:CHILE
  • Showroom Location:algeria
  • Showroom Location:Sri Lanka
  • Showroom Location:Romania
  • Showroom Location:BANGLADESH
  • Showroom Location:south africa
  • Showroom Location:KAZAKHSTAN
  • Showroom Location:UKRAINE
  • Showroom Location:kyrgyzstan
  • Showroom Location:uzbekistan
  • Showroom Location:Tajikistan
  • Showroom Location:malaysia
  • Marketing Type:New Product 2020
  • Machinery Test Report:Provided
  • Video outgoing-inspection:Provided
  • Warranty of core components:1 YEAR
  • Core Components:Bearing
  • Core Components:MOTOR
  • Core Components:GEAR
  • Core Components:PLC
  • Core Components:Gearbox
  • Place of Origin:CN;SHN
  • Type:Veneer peeling lathe
  • Brand Name:Sinoeuro
  • Voltage:220V/380V/415V or as clients request
  • Dimension(L*W*H):5800*2500*1500mm
  • Certification:CE,ISO
  • Power (kW):61.2kw
  • Weight (KG):12000
Product Description

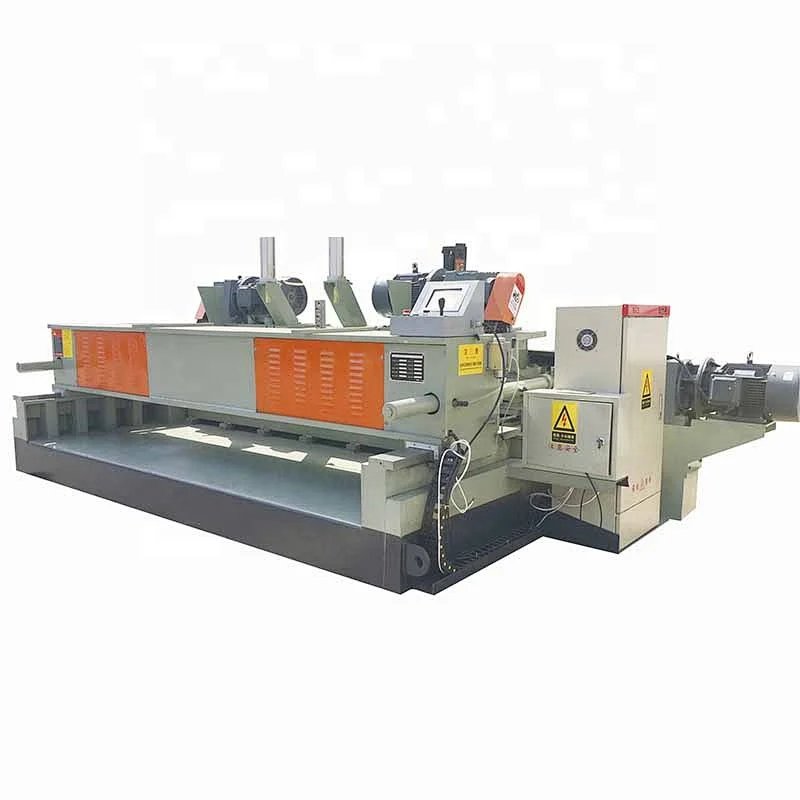

Sinoeuro 8ft heavy duty veneer peeling machine
Peeling hardwood and softwood with different thickness,such as Birch,Beech,Albasia,Poplar,ect.
Thickness is even,double side of veneer is smooth.
Scars part peeling is very smooth
48m/min heavy duty speed fix
40-80m/min speed adjustable
Peel length
Remain logs diameter
Peel thickness
Cutting length
Peel speed
Single roller power
Double roller power
Feeding power
11kw(Servo motor)
11kw(Servo motor)
Total power
Roller diameter
Long-range control
Bottom structure
Total weight
Overall dimension
Detailed Images
1.Key Technology
Special structure to adjust the blade gap, our machine adopt double roller moving method,during peeling the blade gap will change automaticlly according to the log diameter.
The screw part is fully close, dust and veneer chips will not enter the screw.
2.Schneider Electric
Each motor have single inverter and electric is international famous brand Schneider or Siemens. Easy to get at anywhere.
3.Servo Motor
The feeding motor is11kw famous brand servo motor.It can guarantee machine working stable and precise.The thickness of the veneer is accurate.
The cutting motor is3.7kw servo motor,have enough power to cut the thick veneer,keep smooth cutting edges and precise size.
4.Guide Rail
The guide rail part make by high temperature quenching and CNC cutting method,increases the hardness and ensure guide rail has unlimited service life.
Avoid the wear problem like ordinary screw,
and ensure machine
operation no deviation, veneer width and thickness are accurate,produce high quality veneer.
5.Electroplating Roller
All peeling rollers have been quenched and electroplating,increases the peeling roller hardness and sevice life.
The roller pattern have different type.We will choose the right roller pattern acoording to clients differen wood species.
Our factory
Clients feedback
Related Products
1. Can you customize products for clients?
Yes,Sinoeuro machinery can customize and produce woodworking machines according to the customer’s requirements or drawings.
2. How can we trust your factory?
Sinoeuro machinery sincerely invite you come to our factory to verify the real situation of our machine, and know more about our
3. What about the paymet and delivery?
Payment: by T/T 30% down payment, 70% upon machinery completion.
Delivery: After finishing all the payment
Package: Standard packing or as clients' requirement
4.What's your machine warranty?
Warranty: All the machine enjoys one year’s warranty, in this period.
Any problems of machine, please feel free to contact us. We will try our best to make it.All kinds of mold can be made by customer's requirements
5.Do you supply any formula to buyer?
yes, Sinoeuro machinery supply formulas to buyer.
