After-sales Service Provided:Engineers available to service machinery overseas
Size of grinding stone:200*100*32mm
Working Table size:length*width:3200X200mm
Speed of the sliding plate:Stepless speed change
Linear speed of grinding wheel:0-20m/s(adjustable)
Grinding head driving mode:belt transmission
angle of grinding head:±5°
Max grinding length
Working Table size:length*width
Size of grinding stone
Grinding head driving mode
angle of grinding head
Speed of the sliding plate
Stepless speed change
Tilting range of the working table

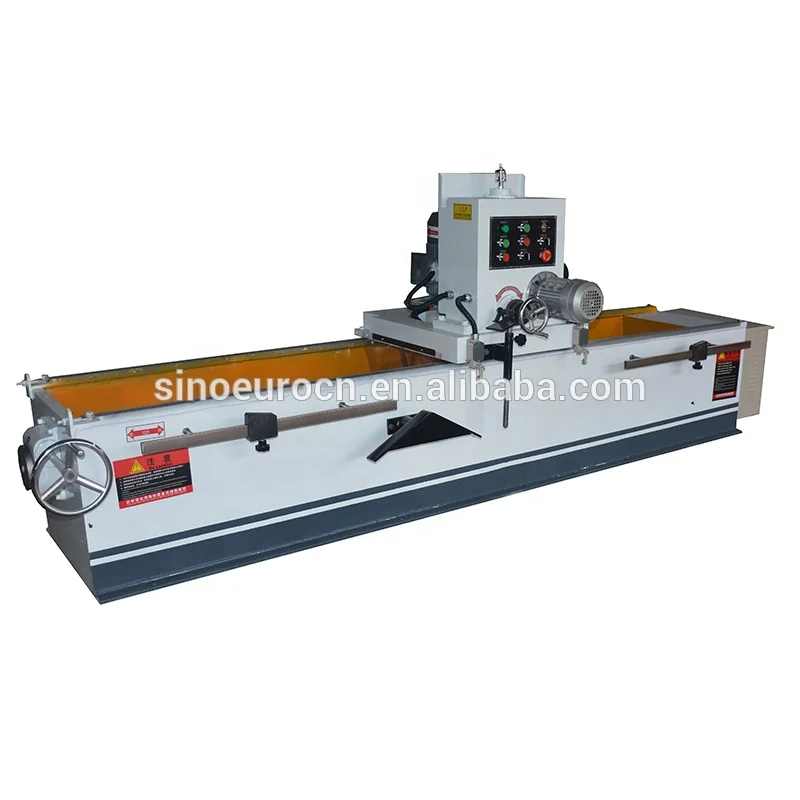

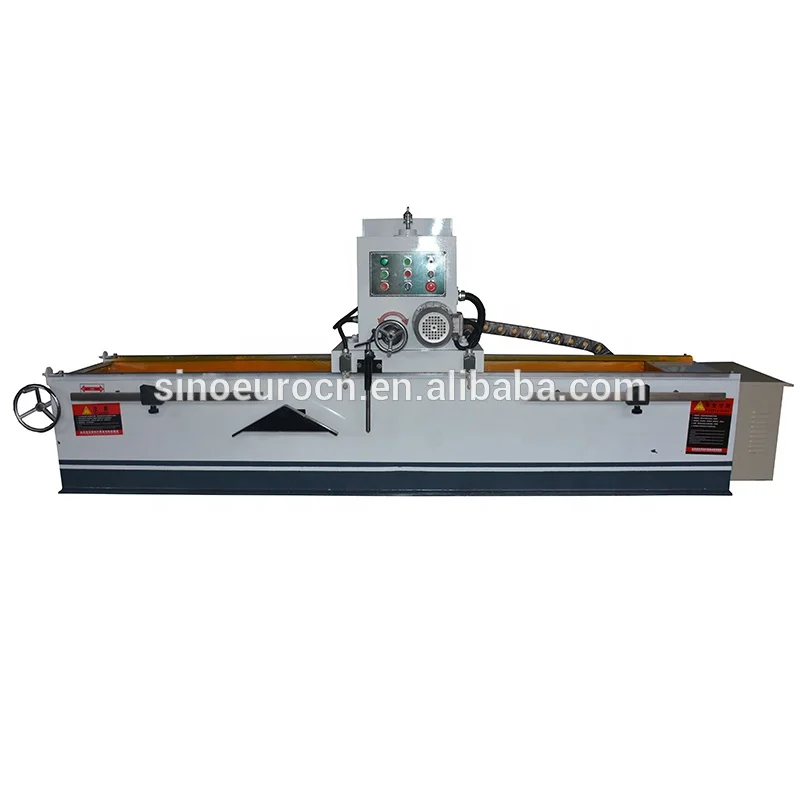

1. This machine mainly grind all type of long knives, like peeling machine knife, Granulator knife,cutting paper knife ,Shearing Blades, sliceing knives etc. 2. This machine can work long surface knife. Max. Working length is 1500mm. 3. This machine’s body is a design of gantry body, with the high-quality steel weld,The body has high strength and good rigidity. 4. The worktable use the electro magnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear. 5. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head. 6. Job accuracy of machine is 0.01mm
Name: CNC controller
Automatic CNC controller, easy to operate and durable.
Name: Electric control panel Scientific and orderly circuit, all the electrical parts are GB startand. We can also adops Siemens electrical parts according to customers requests.
Name: Taiwan Shangyin Precision Linear Guide Rail The machine runs much more precisely and stably, also long service life.
Name: Sucker Copper sucker is more durable, and it is antirust.
1.Our principles: Advanced Technology, Honest First.We are a professional manufacturer for plywood machinery, established in 1994.
2. We specialized in manufacture full plywood machinery.The main product includes all kinds veneer peeling lathes, wood debarker, veneer drier, veneer clipper, knife grinder, glue spreader, press machine, DD saw, sanding machine
3. It has developed into a large scale production model.High precision, easy operate and reasonable price character.hey are sell well in domestic and overseas market.
4. We have set up salesoffice in overseas market and exported to southeast asia, africa, south america, such as india, sri ilanka, vietnam, philippines, ghana, kenya, paraguay, argentina. Our company has a good reputation all over the world.
We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.
Send 2~12 technicians(adjustable according to the degree of automatic ) to the job site for guiding the installation and adjustment on duty, training operators and finishing the check and accept together with you. You can come to our factory to study for free.
We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away.
1. All kinds of mold can be made by customer's requirements
2. All price are based on FOB, QINGDAO, China
3. Payment: by T/T 30% down payment, 70% upon machinery completion. 4. Delivery: After finishing all the payment 5. All the parameters above just for reference, for they are updating all the time
6. Package: Standard packing
7. Warranty: All the machine enjoys one year’s warranty, in this period. Any problems of machine, please feel free to contact us. We will try our best to make it
