BB1131 natural log face veneer slicing machine for Thailand
BB1131 natural log face veneer slicing machine for Thailand
BB1131 natural log face veneer slicing machine for Thailand
BB1131 natural log face veneer slicing machine for Thailand
BB1131 natural log face veneer slicing machine for Thailand

BB1131 natural log face veneer slicing machine for Thailand

Price:
USD 30,000.00-60,000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
25 set / Month
Country of Origin:
QINGDAO
Quantity:
  • Condition:New
  • Place of Origin:China
  • Warranty:1 YEAR
  • After-sales Service Provided:Field installation, commissioning and training
  • Applicable Industries:woodworking veneer slicer
  • Brand Name:Sinoeuro/Mudanjiang
  • Voltage:380V/415V
  • Power(W):40KW
  • Dimension(L*W*H):8030x4530x2530mm
  • Weight:25Tons
  • Certification:CE
  • Model:BB1226
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Main motor power:37kw
  • Feed motor power:4.5kw (servo motor)
  • Clamping motor:7.5kw
  • Conveyor motor:0.75kw
  • Wood clamping unit:10units
  • Clamping methods:Hydraulic
  • Spare parts supply:Will supply st any time
  • Capacity:0-36pcs/min

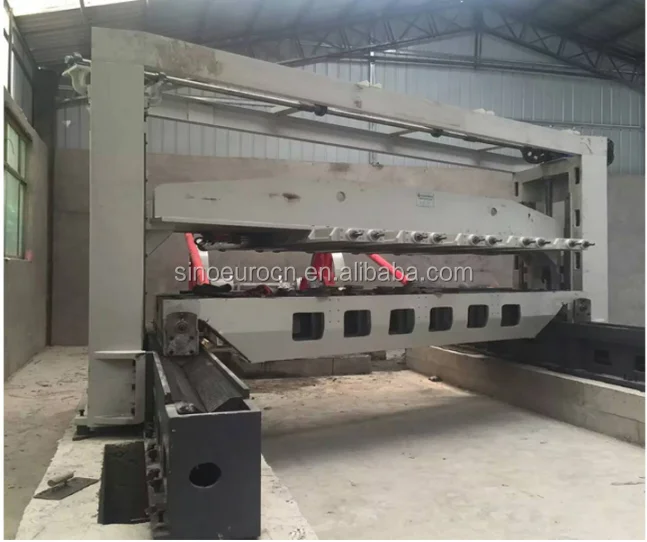

Horizontal engineer wood block slicing machine

Product Description

1 Double V-chutes are used for both sides the machine, with high parallel; special polymer wear-resistant material coated on the surface.Machine runs in higher stability and with less friction.

2 Serve motor control system is used for timber feeding, guarantees the veneer thickness in a high precision, avoiding blade scratch on the timber

3 Whole casted beam holds the log stongly, and hydraulic driven hooks clamp the log tightly and effectively. Vacuum disc system is used inside the log beam to help holding the big timber in order to avoid logs deforming or dropping down during cutting procedure

4 All switch button are gathered in a cabinet.Single person can operate the machine avoiding the dangerous caused by fault

5 Special designed big size driving gear runs smoothly with a low noie when it runs in a high speed


                    SPECIFICATIONS FOR HORIZONTAL  VENEER SLICER
ModelBB1131BB1226BB1142
Max cutting size2600x700x680mm2600x1300x950mm 4200x1300x950mm
Blade size3500x200x24mm3500x200x24mm 4500x2000x24mm
Veneer thickness0.1-2.2mm0.1-2.2mm 0.1-2.2mm
Cutting speed0-36pcs/min0-36pcs/min 0-36pcs/min
Wood clamping unit10units10 units 10units
Clamping methodsHydraulicHydraulic Hydraulic
Total weight22Tons24Tons 32Tons
Overall size8030x4530x2530mm9530x5670x2470mm 9550x5950x2990mm

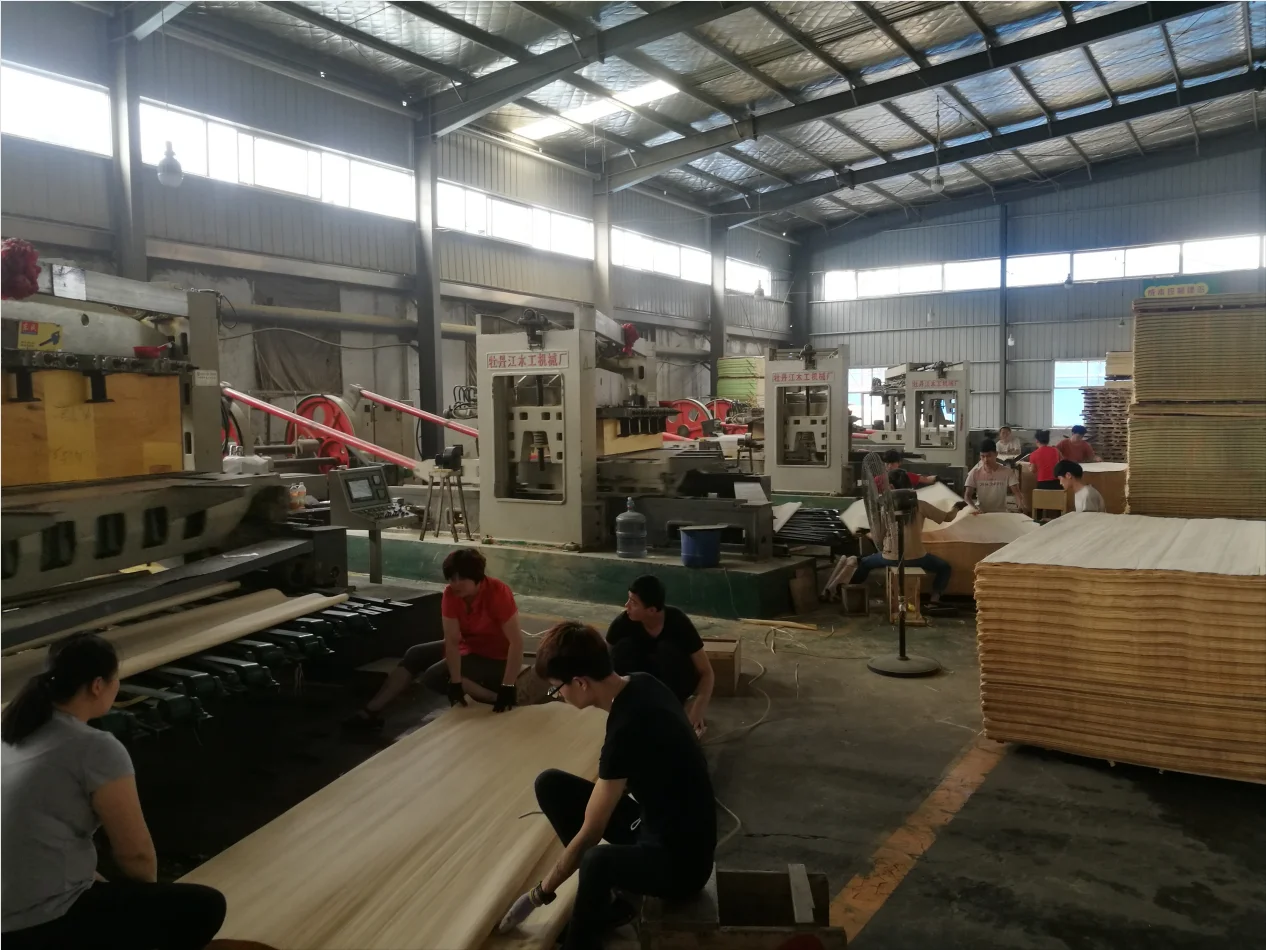

                                                                           Photos in User Factory

slicer 3.jpg


Product Certificate


Company Information


SINOEURO machinery making is a manufacturer  of wood working machinery with well equipped  testing facilities and strong technical force.



 1. Leading manufacturer of woodworking machinery in China, found in 1994. specialize in this field for more than 20 years.



2. Almost 20 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.



3.Specializing in plywood production line. We have our own designers to produce machine according to your requirement.



4. Having own after –sale maintenance center, our engineer can go to overseas for installation  and  commissioning.


Our Services

 our service.jpg

Pre-sale services:



 1) Provide the free consultation of the equipment

 2) Provide the standard device and the flow chart

 3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.

 4) Welcome to visit our factory



 Services during the sales:



 1) Inspect the machine before leaving the factory.

 2) Oversea install and debug the equipment

 3) Train the first-line operator.



After sale services:



1) 24 hours online service

2) Provide the VIDEO with Install and debug the equipment

3) Provide technical exchanging

FAQ



1. All kinds of mold can be made by customer's requirements



2. All price are based on FOB, QINGDAO, China



3. Payment: by T/T 30% down payment, 70% upon machinery completion



4. Delivery: After finishing all the payment



5. All the parameters above just for reference, for they are updating all the time



6. Package: Standard packing



7. Warranty: All the machine enjoys one year’s warranty, in this period



Any problems of machine, please feel free to contact us. We will try our best to make it.
