Price:
USD 8,000.00-8,000.00
Delivery:
FOB
Minimum order quantity:
1
Quantity:
  • Applicable Industries:Hotels
  • Applicable Industries:Garment Shops
  • Applicable Industries:Building Material Shops
  • Applicable Industries:Machinery Repair Shops
  • Applicable Industries:Manufacturing Plant
  • Applicable Industries:Food & Beverage Factory
  • Applicable Industries:farms
  • Applicable Industries:restaurant
  • Applicable Industries:HOME USE
  • Applicable Industries:Retail
  • Applicable Industries:Food Shop
  • Applicable Industries:Printing Shops
  • Applicable Industries:Construction works
  • Applicable Industries:Energy & Mining
  • Applicable Industries:Food & Beverage Shops
  • Applicable Industries:Advertising Company
  • Condition:New
  • Place of Origin:CN;SHN
  • Warranty:1 YEAR
  • After-sales Service Provided:Field maintenance and repair service
  • Applicable Industries:Plywood machine
  • Brand Name:Sinoeuro
  • Voltage:380V/415V/440V
  • Power(W):16.5kw
  • Dimension(L*W*H):12000*2600*2500mm
  • Weight:5500KG
  • Certification:CE ISO
  • Product name:plywood core veneer composer
  • Driving motor:Delta or Siemens Servo motor
  • Fuselage structure:Integral steel plate cutting
  • Conveying speed:0-35m/min
  • Capacity:300pcs/h
  • Working veneer width:968-1270 mm (3-4ft)
  • Cutting veneer length:1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft)
  • Working veneer thickness:1.2-3.6 mm
  • Length of knife:1400 mm
  • Output:300-350pcs/hour (4x8ft)

11

Product Description

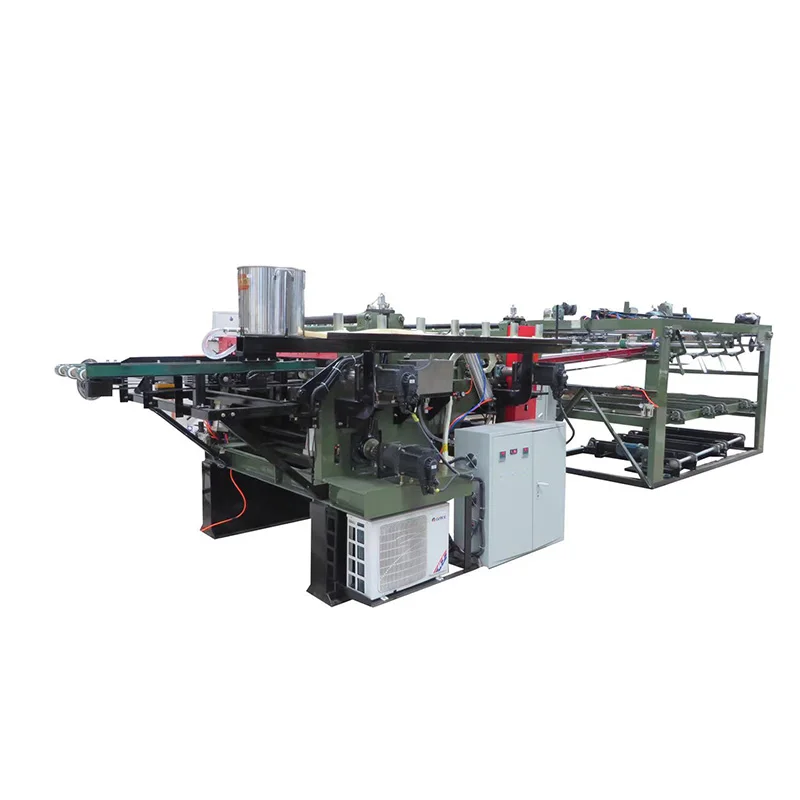

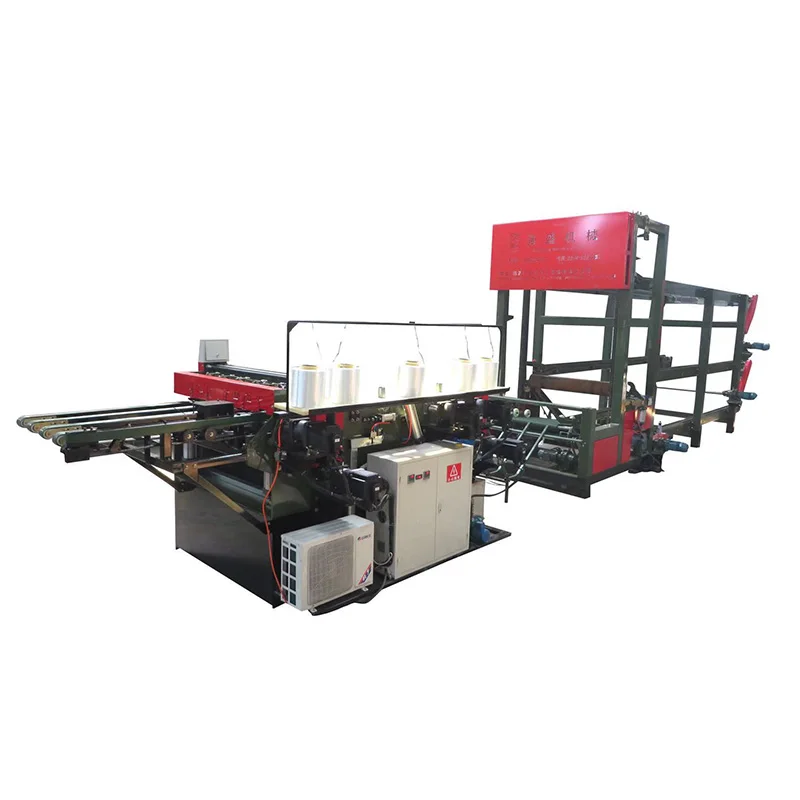

Plywood Core Composer Machine

 Core Composer is mainly used for the production of three-ply board,sandwich board, LVL,floor substrate, furniture panel, building film face board, container board, Melamine Faced Board etc, and it can also be used for the vertical splicing of rotary cut median plate with the thickness of 1.2-3.6mm.this changes the traditional manual decking technology and makes plywood decking unitized and automatically.

core composer machine 1.jpg

core composer.jpg

Conveying speed

0-35m/min

Capacity

300pcs/h

Working veneer width

968-1270 mm (3-4ft)

Cutting veneer length

1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft)

Working veneer thickness

1.2-3.6 mm

Length of knife

1400 mm

PLC

Taiwan Delta

Output

300-350pcs/hour (4x8ft)

Precursor drive

3kw INVT Servo Motor

Rear drive

3kw INVT Servo Motor

Edge cutting drive

INVT Servo Motor

Waste veneer remove

INVT Servo Motor Control

Synchronized docking driver

Electromagnetic Clutch Brake Unit

Position control

Photoelectric and proximity switches

Stacker lifting motor

2.2kw

Stacker board transporting motor

1.1kw

Stacker board transporting control

INVT Invertor

Intermediate Transfer Motor

0.75kw

Frame

Steel plate

Overall dimension

17*3*2.5m

Total weight

6500kg

Final Product
