Double layers plywood face veneer mesh belt dryer
Double layers plywood face veneer mesh belt dryer
Double layers plywood face veneer mesh belt dryer
Double layers plywood face veneer mesh belt dryer
Double layers plywood face veneer mesh belt dryer

Double layers plywood face veneer mesh belt dryer

Price:
USD 110,900.00-112,500.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
2 set / Month
Country of Origin:
Qingdao
Quantity:
  • After Warranty Service:Video technical support
  • After Warranty Service:Online support
  • After Warranty Service:Spare parts
  • After Warranty Service:Field maintenance and repair service
  • Local Service Location:Egypt
  • Local Service Location:canada
  • Local Service Location:turkey
  • Local Service Location:UNITED KINGDOM
  • Local Service Location:United States
  • Local Service Location:ITALY
  • Local Service Location:france
  • Local Service Location:GERMANY
  • Local Service Location:VIET NAM
  • Local Service Location:philippines
  • Local Service Location:brazil
  • Local Service Location:peru
  • Local Service Location:SAUDI ARABIA
  • Local Service Location:indonesia
  • Local Service Location:pakistan
  • Local Service Location:INDIA
  • Local Service Location:Mexico
  • Local Service Location:RUSSIA
  • Local Service Location:spain
  • Local Service Location:Thailand
  • Local Service Location:japan
  • Local Service Location:malaysia
  • Local Service Location:Australia
  • Local Service Location:Morocco
  • Local Service Location:argentina
  • Local Service Location:South Korea
  • Local Service Location:CHILE
  • Local Service Location:UAE
  • Local Service Location:Colombia
  • Local Service Location:algeria
  • Local Service Location:Sri Lanka
  • Local Service Location:Romania
  • Local Service Location:BANGLADESH
  • Local Service Location:south africa
  • Local Service Location:KAZAKHSTAN
  • Local Service Location:UKRAINE
  • Local Service Location:kyrgyzstan
  • Local Service Location:uzbekistan
  • Local Service Location:Tajikistan
  • Showroom Location:turkey
  • Showroom Location:VIET NAM
  • Showroom Location:brazil
  • Showroom Location:INDIA
  • Showroom Location:Thailand
  • Showroom Location:CHILE
  • Showroom Location:south africa
  • Showroom Location:UKRAINE
  • Showroom Location:uzbekistan
  • Showroom Location:malaysia
  • Condition:New
  • Place of Origin:CN;SHN
  • Warranty:1 YEAR
  • After-sales Service Provided:Field installation, commissioning and training
  • Key Selling Points:High-accuracy
  • Applicable Industries:woodworking veneer dryer
  • Type:Roller dryer
  • Brand Name:SINOEURO
  • Voltage:380V/415V
  • Dimension(L*W*H):35130X4330X2900mm
  • Certification:CE ISO9001
  • Power (kW):99KW
  • Weight (KG):60000
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Capacity:2.5-3.2 m3/hour
  • Veneer thickness:0.5-1.5 mm
  • The moisture after dryed:8-10 %
  • Drying temperature:130~160℃
  • Steam consumption:2800kg/h
  • Veneer volume:~590kg/m3
  • wire mesh belt:galvanized 35*35mm
  • Controlling method for mesh belt:infrared ray
  • Working Width:2650mm
Product Description

                        Core veneer roller dryer






1. Constant temperature control, drying effect is good. Drying room temperature control method for closed loop control,

electrical cabinet drying room temperature real-time control, venner is always in most ideal drying temperature range.

2. Energy saving high efficient, full use of the heat. The industry's leading heat using the technology of hot air blower heat recycling to lumber drying process,

produced by the waste heat of hot air stove auxiliary raise drying room temperature.

3. The high degree of automation, operation easy.venner by drying type roller conveyor, and level off, effectively greatly improve the quality of the plate.




Type

2 layer roller dryer

Condition

New

whole length

30m

working width

2.8 m

veneer thickness

1-7mm

Working layers

2 layer

Each entry leather

4 pcs

Daily out put

40-50M3/24hours

Initial moisture

80-85%

Final moisture

8-12 %

Voltage

380V

Power of heating motor

5.5kwX7sets

Power of conveyor motor

5.5kw*2sets

Drying temperature

150 -200℃

Roller material

Chrome plated

Roller diameter

10.8mm

Fuel

bark and other tree waste

Weight

50-60t

Delivery

40F container*3



Technical parameters

2 layer mesh dryer

Working width            mm

2650mm

Working layers

2

Length of heating section    mm

11×2000mm=22000mm

 Length of cooling section    mm

1×2000=2000mm

Total power               kw

95.7kw

Transport motor            kw

5.5×2=11kw

Heating motor             kw

7.5×11=82.5kw

Cooling motor             kw

2.2×1=2.2kw

Veneer transportation speed   m/min

3~30

 Heating medium

 Heat conduction oil

Drying temperature         ℃

140~180

Oil                      kcal/h

1,500,000 kcal

Veneer density          kg/m³

~590

Available veneer thickness   mm

0.5~1.5

Veneer initial moisture content  %

60

Veneer final moisture content   %

 10±2

Drying capacity            m³/h

~2.5

Load ratio                  %

85

Center distance of roller       mm

500

Hole width (mesh)         mm

25× 35×26  50

Overall dimension(L*W*H)   mm

29300×4330×2900

Front veneer conveyor        mm

6800

Back veneer conveyor        mm

6800

Total weight                  kg

49,000

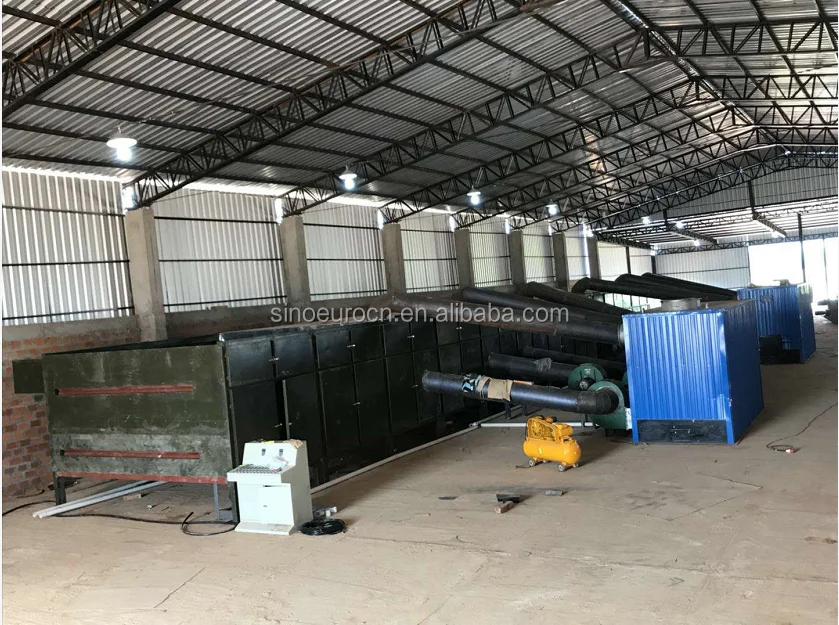

User factory install









Product Certificate

 certificate

Our Services

our service

Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging

Company Information

factory

 SINOEURO machinery making is a manufacturer of wood working machinery with well equipped testing facilities and strong technical force.
1. Leading manufacturer of woodworking machinery in China, found in 1994. specialize in this field for more than 20 years.
2. Almost 20 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.
3.Specializing in plywood production line. We have our own designers to produce machine according to your requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.

FAQ



1. All kinds of mold can be made by customer's requirements

2. All price are based on FOB, QINGDAO, China

3. Payment: by T/T 30% down payment, 70% upon machinery completion.

4. Delivery: After finishing all the payment


5. All the parameters above just for reference, for they are updating all the time


6. Package: Standard packing

7. Warranty: All the machine enjoys one year’s warranty, in this period.

Any problems of machine, please feel free to contact us. We will try our best to make it.
