Model NO.
single motor driven for the double roller
Price:
USD 10,000.00-23,000.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
30 set / Week
Country of Origin:
qingdao
Quantity:
  • Place of Origin:CN;SHN
  • Weight:5500kg
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Dimension(L*W*H):5200*1800*1400mm
  • Voltage:380V/415V
  • Model Number:single motor driven for the double roller
  • Brand Name:SINOEURO
  • Type:saw
  • Condition:New
  • Warranty:One Year
  • Power(W):24kw
  • Certification:CE ISO9001
  • Configuration:Servo Enhanced &invert
  • Length of peeler log:2000-2600mm
  • Diameter of peeler log:36-400mm
  • Length of blade:2700mm
  • Thickness of veneer peeler:0.3-1.8mm
  • Diameter of driving roller:118mm
  • Power of driving roller:7.5KW
  • Power of cutting feed:7.5(Servo Motor)KW
  • Power of pressurebar roller:7.5kw
  • Total weight:5500kg

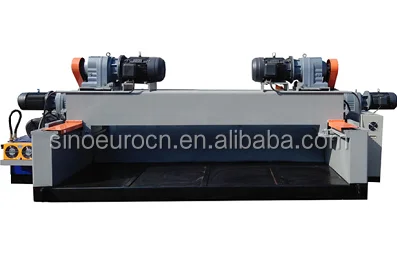

                    8FT Spindleless Face Veneer Peeling Machine

Product Description



                          Veneer Peeling Machine Performance Characteristics


1. High performance CNC system control feeding. The board is smooth, with high productivity.

2. The feeding system adopts the screw and screw nuts. The screw nuts adopt the magnesium aluminum alloy, copper and other materials. So it is with long service life.

3. Automatic adjustment of cutting system, skin is much more uniform and smooth. Apply to woods with different diameters.

4.During the rotary cutting production, the machine can adjust the thickness of two kinds of veneer constantly and won't cause the crack of the veneers.

5.Block type screw and slider, high-precision and energy-saving.

6. The NC rotary and leather cutting are in one, so the machine is with high productivity and labor-saving.




Specification
Max peeling length
2000mm-2700mm
Max peeling diameter
400mm
Thickness range
0.3mm-1mm
Core diameter of remaining
30-36mm
Total power
30KW
Line speed
45m/minute
Roller diameter
120mm
Weight
5.5T
Overall dimension
5000*2000*1400 mm



                                  Advantage of Our Veneer Peeling Machine



Emerson Inverter, CNC ControlServo Motor, More PreciseHydraulic Blade Lifting, Easy to Change Knife
Taiwan Copper Screw Nut, More DurableHardened Gear ReducerDovetail Tail Structure. It is Up, Down, Left , Right side balance.
Matching machines



                                        Related Machine in Veneer Peeling Line




Heavy Duty Log Debarker:



Max. Peeling Diameter: 500mm



Max. Peeling Length: 2700mm



Total Power: 44KW



Total Weight: 6000KG



Overall Dimension: 5000*2300*1600mm

vacuum stacker.png

Vacuum Core Veneer Stacker:



Stacking Width: 2700mm



Stacking Thickness: 1-5mm



Stacking Height: 1200mm



Total Power: 20.35KW



Total Weight: 3400KG



Overall Dimension: 8000*2040*2750mm



Packaging & Shipping




Nude Package.





1*40HQ for Log debarker, Veneer peeling machine and Knife grinder



FAQ

 1. All kinds of mold can be made by customer's requirements

2. All price are based on FOB, QINGDAO, China

3. Payment: by T/T 30% down payment, 70% upon machinery completion.

4. Delivery: After finishing all the payment


5. All the parameters above just for reference, for they are updating all the time


6. Package: Standard packing

7. Warranty: All the machine enjoys one year’s warranty, in this period.

Any problems of machine, please feel free to contact us. We will try our best to make it.

Why choose us

                                                     Why Choose Us

Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging

Company Information




SINOEUROmachinery making is a manufacturer of wood working machinery with well equipped testing facilities and strong technical force.
1. Leading manufacturer of woodworking machinery in China, found in 1994. specialize in this field for more than 20 years.
2. Almost 20 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.
3.Specializing in plywood production line. We have our own designers to produce machine according to your requirement.
4.Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.


Customer visit

 .jpg
