popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine
popular 4*8 ft plywood veneer building machine

popular 4*8 ft plywood veneer building machine

Price:
USD 26,800.00-31,800.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
25 set / Month
Country of Origin:
qingdao
Quantity:
  • After Warranty Service:Online support
  • Local Service Location:none
  • Showroom Location:none
  • Condition:New
  • Place of Origin:CN;SHN
  • Warranty:1 YEAR
  • After-sales Service Provided:Free spare parts
  • Key Selling Points:Automatic
  • Type:veneer composer
  • Brand Name:sinoeuro
  • Voltage:380V/415V
  • Dimension(L*W*H):12000*2600*2500mm
  • Certification:CE ISO
  • Weight (KG):5500
  • Applicable Industries:plywood machinery
  • Conveying speed:0-35m/min adjustable
  • Fuselage structure:Integral steel plate cutting
  • Capacity:300pcs/h
  • Working veneer thickness:1.2-3.6 mm
  • Length of knife:1400 mm
  • Working veneer width:968-1270 mm (3-4ft)
  • Length of felt-board machine:3600mm
  • Output:300-350pcs/hour (4x8ft)
  • Width of stacking machine:2200mm
Product Description

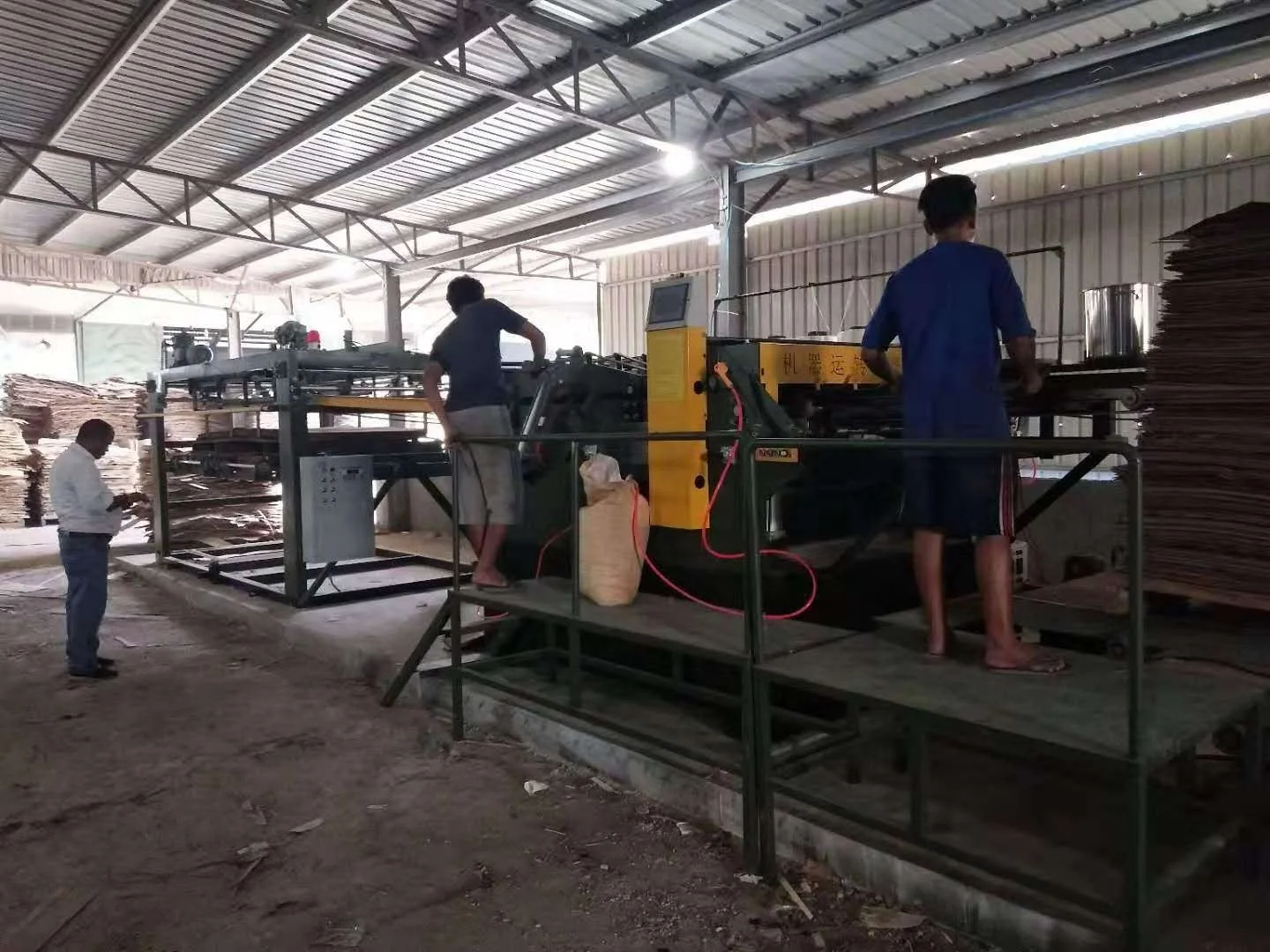

Application of Core Veneer Composer

Core veneer jointer machine is suitable for core joining together in plywood production line. It can work different length sizes of core veneer with high strength thread and hot melt adhesive connection as one whole body Then facilitate the subsequent stages of production of plywood line. The whole process can be operated by one worker, it is time-saving and efficient.

Linyi sinoeurocn plywood core composer machine

Product specification
Driver
All Servo Motor
Fuselage structure
Integral steel plate cutting
Conveying speed
0-35m/min
Capacity
300pcs/h
Working veneer width
968-1270 mm (3-4ft)
Cutting veneer length
1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft)
Working veneer thickness
1.2-3.6 mm
PLC
Taiwan Delta
Output
300-350pcs/hour (4x8ft)
Weight
5500kg
Total power
16.5kw

Main Features

1.PLC computer control, one-person operation, process automation save labor

2. High-precision detection, to minimize the amount of shear

3. Servo precise positioning, limited control overlap from the seam

4. Special high-strength wire, enhance product longitudinal tensile strength and flexibility is no longer broken1.
5. Use dedicated high-strength heat melts glue thread to stop the veneer breaking.
6. We use international famous brand parts such as Taiwan Delta, Germany Siemen

Our Services



Pre-sale services:

We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.

In-sale services:

Send 2~12 technicians(adjustable according to the degree of automatic ) to the job site for guiding the installation and adjustment on duty, training operators and finishing the check and accept together with you. You can come to our factory to study for free.

After-sale services:

We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away.

Packaging & Shipping

 initpintu_

Company Information



SINOEUROmachinery making is a manufacturer of wood working machinery with well equipped testing facilities and strong technical force.


1. Leading manufacturer of woodworking machinery in China, found in 1994. specialize in this field for more than20 years.

2. Almost 20 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.
3.Specializing in plywood production line. We have our own designers to produce machine according to your requirement.
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.
