Price:
USD 35,500.00-54,500.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
30.0 set / Month
Country of Origin:
Qingdao
Quantity:
  • Main motor power:75KW*2
  • Max. Calibration thickness:1mm
  • Sanding thickness:5-150mm
  • Sanding width:1300mm
  • Size of sand belt (WxP):2800*1350mm
  • Electric parts brand:Schnieder
  • Conveyor belt:From Taiwan
  • Sanding tolorence:0.05mm
  • Weight:14500KG
  • Power(W):163.25KW
  • Condition:New
  • Machine Type:wood sanding machine
  • Video outgoing-inspection:Provided
  • Machinery Test Report:Provided
  • Marketing Type:Hot Product 2019
  • Warranty of core components:2 years
  • Core Components:PLC
  • Core Components:Bearing
  • Core Components:Gearbox
  • Core Components:MOTOR
  • Warranty:1 YEAR
  • After-sales Service Provided:Online support
  • Key Selling Points:High-accuracy
  • Showroom Location:VIET NAM
  • Showroom Location:indonesia
  • Showroom Location:INDIA
  • Showroom Location:RUSSIA
  • Showroom Location:Thailand
  • After Warranty Service:Video technical support
  • After Warranty Service:Online support
  • After Warranty Service:Spare parts
  • After Warranty Service:Field maintenance and repair service
  • Applicable Industries:Wood working machine
  • Local Service Location:VIET NAM
  • Local Service Location:indonesia
  • Local Service Location:INDIA
  • Local Service Location:RUSSIA
  • Local Service Location:Thailand
  • Local Service Location:malaysia
  • Place of Origin:CN;SHN
  • Brand Name:Sinoeuro
  • Weight (KG):14500 KG
  • Power (kW):163.25

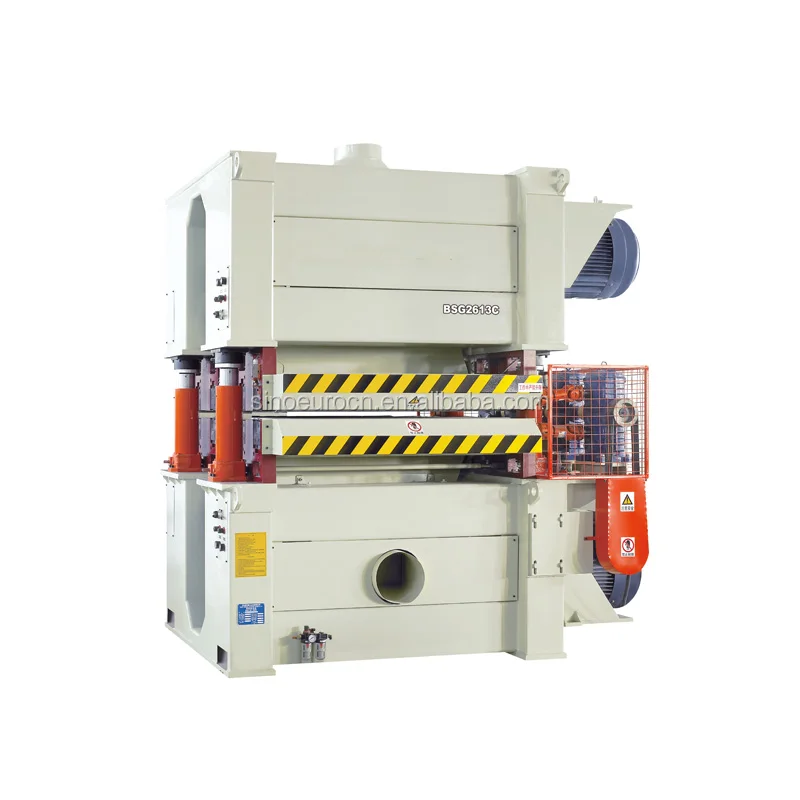

       Woodworking Machine Heavy Duty Calibrating and Sanding Machine


ModelBSG2613ABSG2613C
Working width40-1300mm40-1300mm
Working thickness5-150mm5-150mm
Working precision±0.05mm±0.05mm
Abrasive belt speed25/s25/s
Abrasive belt size P*W2800*1350mm2800*1350mm
Auto-feeding system: frequency10-30/min (adjustable)10-30/min (adjustable)
Motor for lifting0.75KW0.75KW
Motor for brush0.37KW*20.75KW*2
Motor for abrasive belt75KW*275KW*2
Total power162.49W163,25W
Max. calibrating thickness0.7mm1mm
Driving modeSingle power transmissionDouble power transmission
Overall dimension2100*3100*3050m2100*3100*3050m
Net weight1000kg14500kg

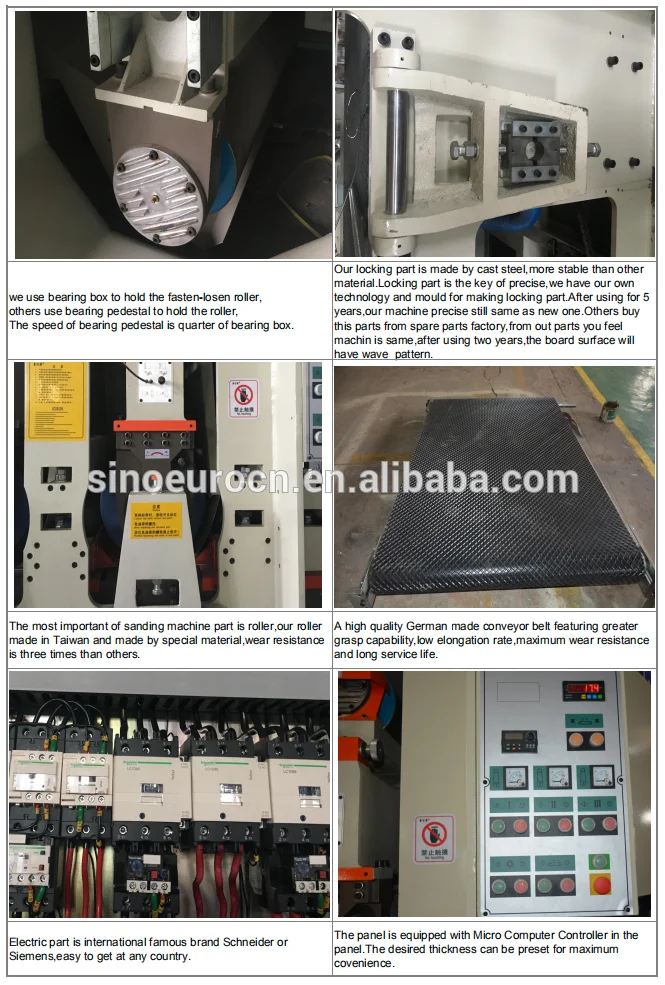

BSG Model Sander Advantages





1. High sanding speed. Working capacity is double of normal wide belt sanding machine. About 3000pcs/day.      2. It is heavy duty calibrating machine, do big removing thickness, Max. removing thickness 1mm, it can be adjusted according to user requirement.                                                                                                                    3. Good evenness. It can calibrate board with big removing thickness, also make board with good evenness at same time.

4. Heavy duty and long service life. The machine is still with high sanding accuracy after 5 years working.          5. High configuration. Machine adopts Schneider and CHNT electric parts, Huali brand (the best China motor brand) motor, Taiwan roller._20200214171806.png

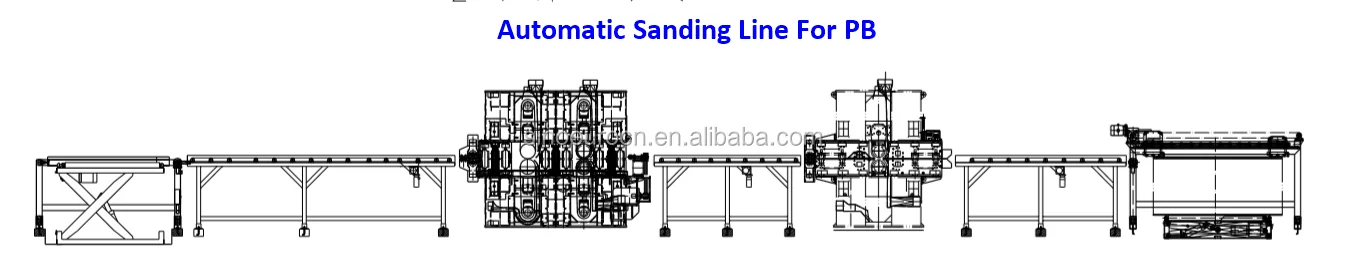

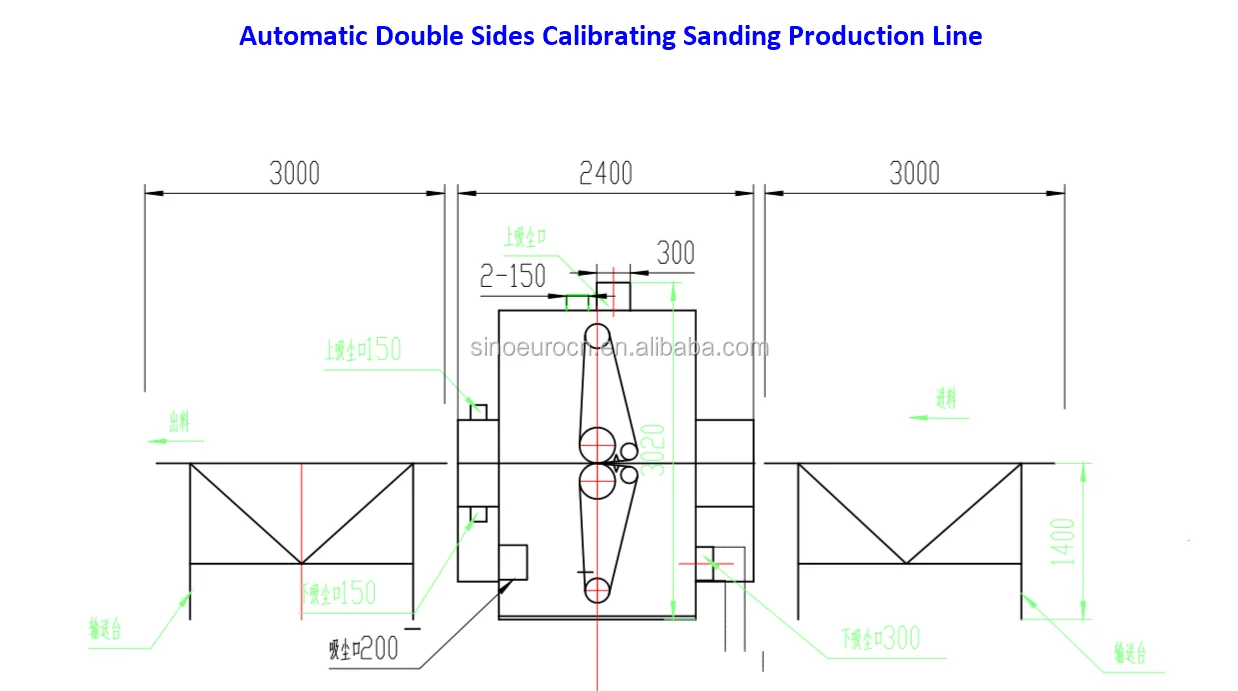

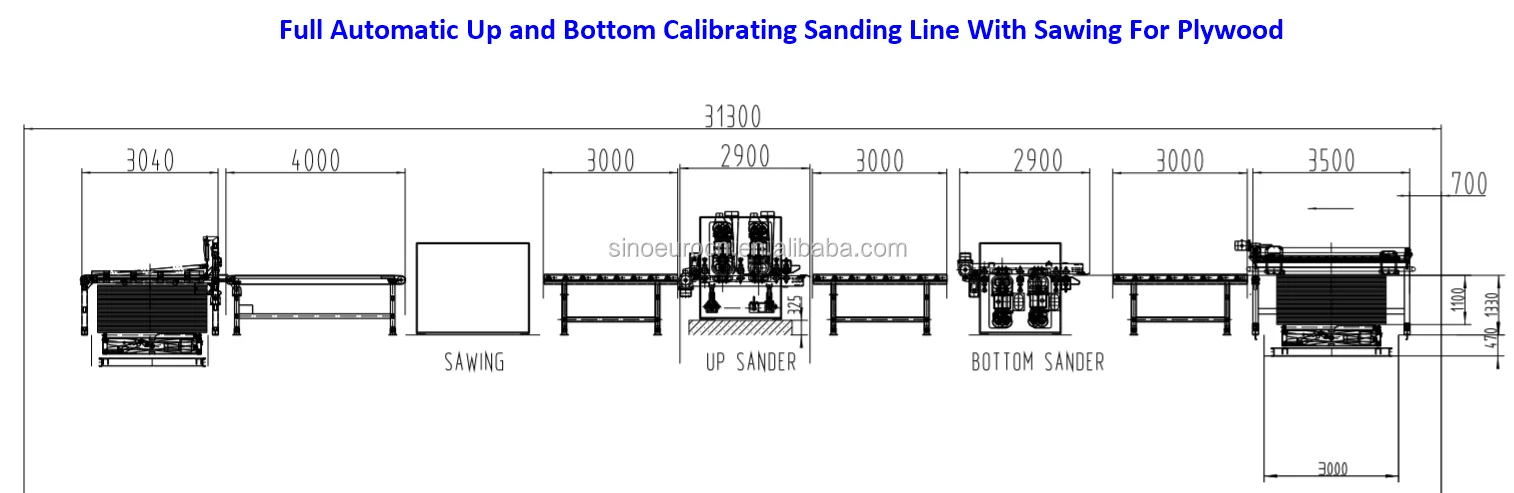

Automatic Calibrating Sanding Line Drawings



We can provide complete solution for plywood production line and automatic sanding line solution for PB, MDF plant. Not only high quality equipments, but also workshop design and experienced after-sales service. Here are some drawings for our customer's layout design.





Other Models Sanding Machine



 Single Side Calibrating Sander                 Wide Belt Sander                      Furniture Brush Sander



heavy duty sanding machine.jpgwide belt sander (2).jpg3.jpg



 Machines in Users' Factory



sanding user.jpg

Our Services



1. Can you customize products for clients?
Yes, We can customize and produce woodworking machines according to the customer’s requirements or drawings.
2. How can we trust your factory?
We sincerely invite you come to our factory to verify the real situation of our machine, and know more about our
factory.
3. What about the paymet and delivery?

Payment: by T/T 30% down payment, 70% upon machinery completion.
Delivery: After finishing all the payment
Package: Standard packing or as clients' requirement
4.What's your machine warranty?
Warranty: All the machine enjoys one year’s warranty, in this period.
Any problems of machine, please feel free to contact us. We will try our best to make it.All kinds of mold can be made by customer's requirements

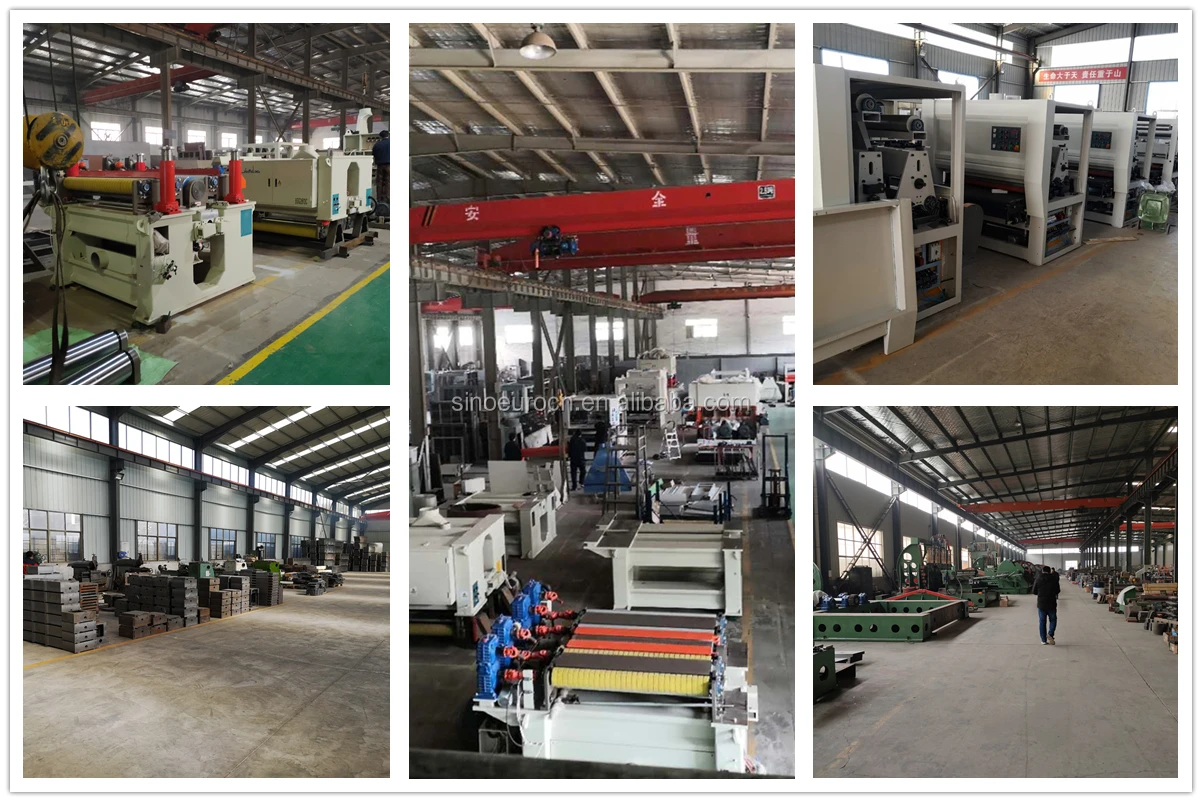

Company Information

 0



Sinoeuro Machinery is a professional woodworking machinery manufacturer in Linyi China with more

than 20 years’ experience. We are specialized in veneer peeling line,  plywood production line, LVL and PB, OSB production line. We can offer you not only complete equipment solutions to your plant, but also good

technology service. We have our own designers to meet any of your requirements. The most competitive price

and the superior quality as well as perfect after-sale service. Mature and superior techniques are available to

teach customers how to operate if necessary. We have our own after-sale maintenance center, our engineer

can go to overseas for installation and commissioning.
