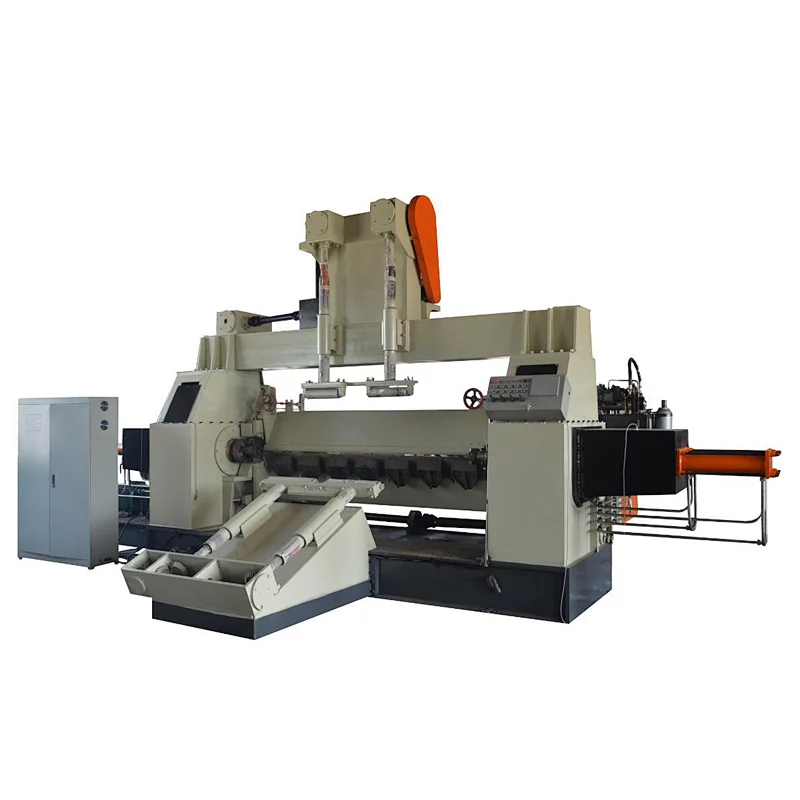

spindle thick core veneer peeling machine with hydraulic chuck clamps
spindle thick core veneer peeling machine with hydraulic chuck clamps
spindle thick core veneer peeling machine with hydraulic chuck clamps
spindle thick core veneer peeling machine with hydraulic chuck clamps
spindle thick core veneer peeling machine with hydraulic chuck clamps
spindle thick core veneer peeling machine with hydraulic chuck clamps
spindle thick core veneer peeling machine with hydraulic chuck clamps
spindle thick core veneer peeling machine with hydraulic chuck clamps
spindle thick core veneer peeling machine with hydraulic chuck clamps

spindle thick core veneer peeling machine with hydraulic chuck clamps

Price:
USD 45,700.00-46,900.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
10 set / Month
Country of Origin:
Qingdao
Quantity:
  • After Warranty Service:Video technical support
  • After Warranty Service:Field maintenance and repair service
  • Local Service Location:VIET NAM
  • Local Service Location:indonesia
  • Local Service Location:RUSSIA
  • Local Service Location:malaysia
  • Showroom Location:VIET NAM
  • Showroom Location:indonesia
  • Showroom Location:RUSSIA
  • Showroom Location:malaysia
  • Condition:New
  • Place of Origin:CN;SHN
  • Warranty:1 YEAR
  • After-sales Service Provided:Field installation, commissioning and training
  • Key Selling Points:High-accuracy
  • Type:heavy duty log peeling lathe
  • Brand Name:Sinoeuro
  • Voltage:380V/415V
  • Dimension(L*W*H):8000mm*3500mm*3200mm
  • Certification:CE ISO
  • Power (kW):69.6
  • Weight (KG):23000
  • Applicable Industries:Plywood Machinery
  • Product name:Heavy duty log peeling lahte
  • Total power:69.6kw
  • Max. peeling length:2600mm
  • peeling speed:0-80m/min
  • max peeling diameter:1300mm
  • Motor brand:Huali (best of China)
  • Veneer peeling thickness:1-10mm
  • Total weight:23000kg
  • Invertor:Taiwan Delta
  • Overall dimension:8000*3500*3200mm
Product Description

Main Features

1. Double hydraulic clamping chucks, change chucks automaticly, more automatic and labor-saving.

2. Heavy duty, make peeling work more stable and precise.
3. All invertors are Taiwan Delta brand.

4. Suitable for peeling thick core veneer, can matching with auto centering device and feeding conveyor for automatic line.

Main Parameters of 8FT Spindle Thick Core Veneer Peeling Machine
Max slicing diameter
1300mm
Slicer veneer thickness
1-10mm
Slicer length
2000mm-2600mm
Peeling speed
0-80m/min
Total motor power
69.6KW
Invertor
Taiwan Delta
Remain wood core diameter
110mm
Overall dimension
8000mm*3500mm*3200mm
Gross weight
23000kg
Matching Machines

1. Rotary Clipper with Servo Motor

Max. working width                        : 2700mm
Clipping thickness                          :0.8-10mm
The voltage                                         :  380V/415V
Feeding speed                                   : 0-50m/min
Motor power                                       :4kw*2 servo motor
Product dimension                          :9000*4000*1500mm
Weight                                                   : 2500KGS

2. Vacuum Core Veneer Stacker

Stacking width                        : 1300-2600mm
Stacking length                       : 500-1320mm
veneer thickness                     : 0.8-10mm
Stacking speed                        : 90m/min
Vacuum absorb motor          : 1.5KW*8PCS
Total weight                              : 3600kgs
Overall dimension                  :  8100*3200*2750mm

Packing & Delivery
Company Profile
Our Customers
Our Service

Pre-sale services:

We provide best service according to your demand, such as prophase plan, examine on the spot, process flow design , customized equipment, design solution for complete production lines and operator training etc.

In-sale services:

Send 2~12 technicians(adjustable according to the degree of automatic ) to the job site for guiding the installation and adjustment on duty, training operators and finishing the check and accept together with you. You can come to our factory to study for free.

After-sale services:

We provide one year warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replancements can be shipped to your right away.
