After-sales Service Provided:Engineers available to service machinery overseas
Max Grinding Length:2800mm
Power of grinding head:4kw
Guide rail:Precise linear guide rail
Name:Blade sharpening machine

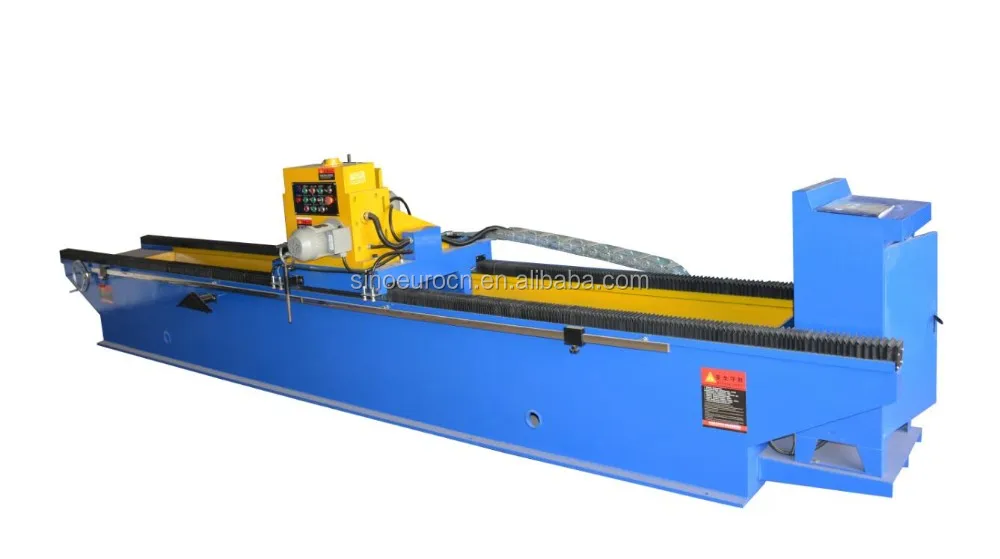

CNC Blade Grinding Machine
1. This machine mainly grind all type of long knives, like peeling machine knife,cutting machine knife, etc.
2. This machine’s body is a design of gantry body, with the high-quality steel weld, stress relieved eliminating
the internal stress. The body has high strength and good rigidity. the thickness of the steel is 10 or 12mm.
3. The grinding head use the dedicated motor. It can adjusted the gap of axial direction, transmission steady, long life and high accuracy. The vertical movement of the grinding head use the ball screw, to ensure the
4. The worktable use the electromagnetic chuck. And very convenience to clamp knife. The worktable is easy
to adjust the angle by worm gear.
5. The rail use linear guide and ensure the steady horizontal movement of grinding head .
6. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
7. Job accuracy of machine is 0.01mm
1.Electromagnetic sucker. 2.Frequency converter. 3.Precise linear guide rail.

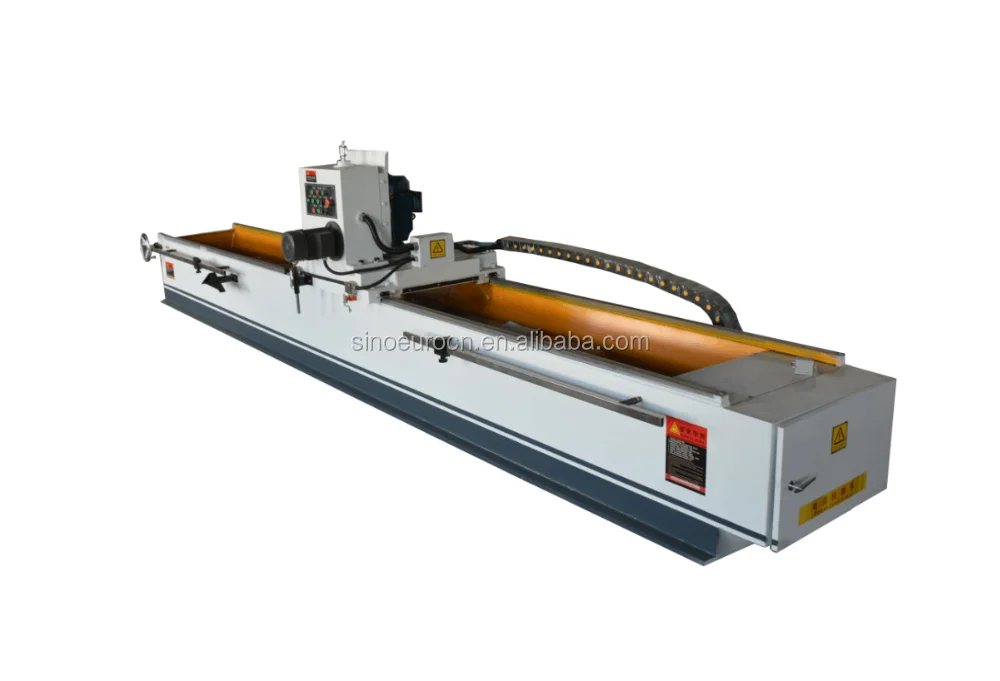

Heavy duty knife grinder is good for rough and fine grinding work.
This paper knife grinding machine mainly used for grinding various angle of straight knife blade.
Suitable for various types knives of furniture, printing, textile field,etc.
The machine can obtain good, sharp knives by using a fine grinding wheel after a rough one.
Easy to operate with automatic head travel.
The knife grinder has magnetic table, automatic feeding, easy to handle.
Max. grinding length (mm)
Width of working-table (mm)
Grinding head motor power (kw)
Linear velocity of grinding wheel (m/s)
Speed of sliding plate (m/min)
Tilting range of working table
Overall dimensions (mm)
Why choose us
SINOEUROmachinery is a manufacturer of wood working machinerywith well equipped testing
facilities and strong technical force.
1. Leading manufacturer of woodworking machinery in China, found in 1994. specialize in this field for more
than 20 years.
2. Almost 20 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All
products are quite popular among clients.
3. Specializing in plywood production line. We have our own designers to produce machine according to your
4. Having own after –sale maintenance center, our engineer can go to overseas for installation and
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
Work and Delivery
1. All price are based on FOB, QINGDAO, China
2. Payment: by T/T 30% down payment, 70% upon machinery completion.
3. Delivery: After finishing all the payment
4. All the parameters above just for reference, for they are updating all the time
5. Package: Standard packing
6. Warranty: All the machine enjoys one year’s warranty, in this period.
Any problems of machine, please feel free to contact us. We will try our best to make it.
