Price:
USD 26,800.00-31,800.00 / set
Delivery:
FOB
Minimum order quantity:
1 set
Supply Ability:
25 set / Month
Country of Origin:
Qingdao
Quantity:
  • Condition:New
  • Place of Origin:CN;SHN
  • Warranty:1 year
  • After-sales Service Provided:Field maintenance and repair service
  • Applicable Industries:Plywood machine
  • Brand Name:Sinoeuro
  • Voltage:380V/415V/440V
  • Power(W):16.5kw
  • Dimension(L*W*H):12000*2600*2500mm
  • Weight:6500KG
  • Certification:CE ISO
Product Description

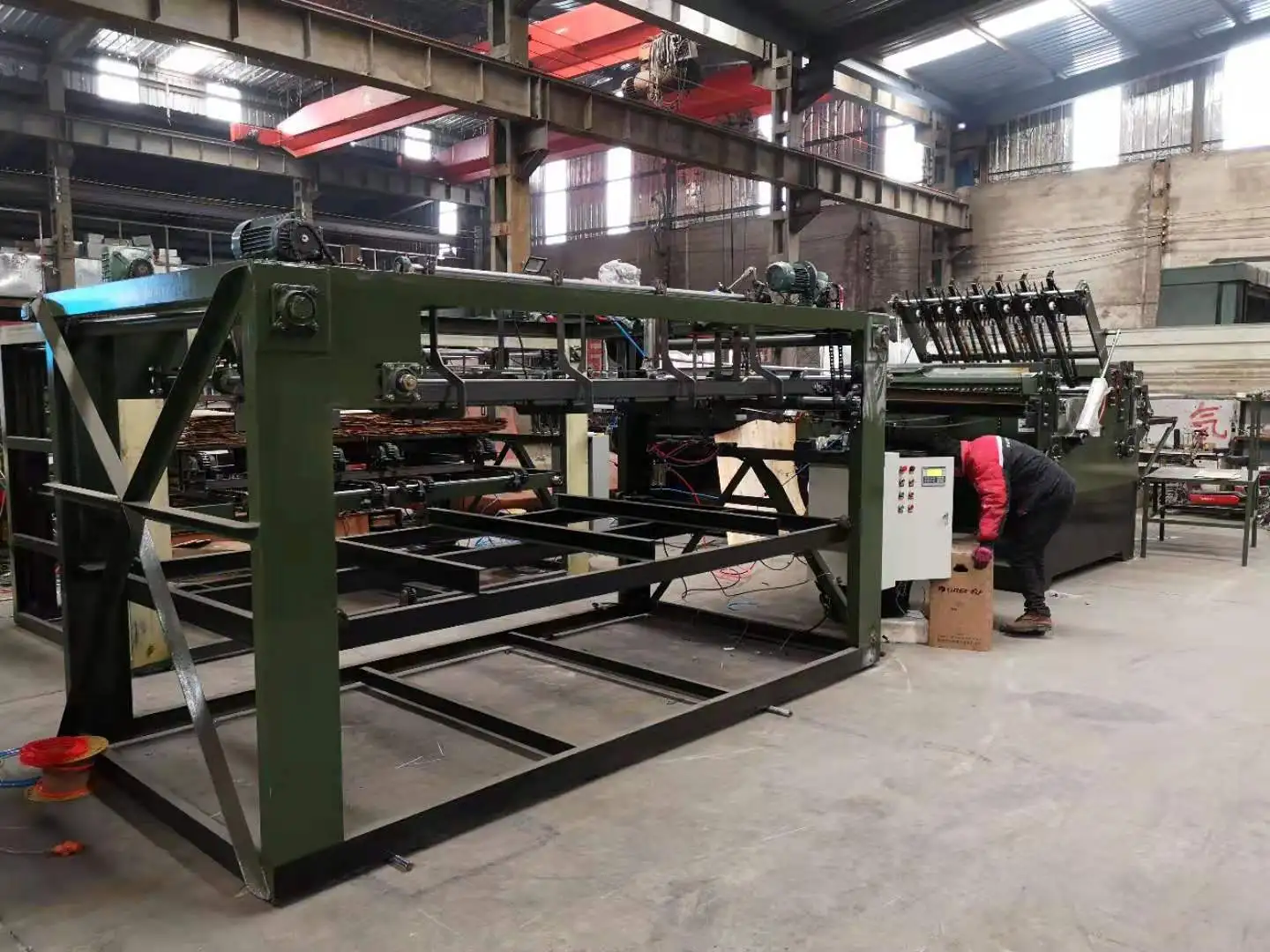

Core Veneer Composing Machine


Application of Core Veneer Composer

Core veneer jointer machine is suitable for core joining together in plywood production line. It can work different length sizes of core veneer with high strength thread and hot melt adhesive connection as one whole body Then facilitate the subsequent stages of production of plywood line. The whole process can be operated by one worker, it is time-saving and efficient._201902221139291.jpg



Product specification
Driver
All Servo Motor
Fuselage structure
Integral steel plate cutting
Conveying speed
0-35m/min
Capacity
300pcs/h
Working veneer width
968-1270 mm (3-4ft)
Cutting veneer length
1220-2560 mm (4ft, 5ft, 6ft, 7ft, 8ft)
Working veneer thickness
1.2-3.6 mm
PLC
Taiwan Delta
Output
300-350pcs/hour (4x8ft)
Weight
6500kg
Total power
16.5kw

Main Features

1.PLC computer control, one-person operation, process automation save labor

2. High-precision detection, to minimize the amount of shear

3. Servo precise positioning, limited control overlap from the seam

4. Special high-strength wire, enhance product longitudinal tensile strength and flexibility is no longer broken1.
5. Use dedicated high-strength heat melts glue thread to stop the veneer breaking.
6. We use international famous brand parts such as Taiwan Delta, Germany Siemen

Product Detail



INVT brand servo motor. 5PCS servo motor with planetary reducer.Electromagnetic clutch driving, it takes front core veneer to peel the behind core veneer driving. No veneer stuck.
_20190415153029.pngglue for veneer composer.jpg
5pcs INVT inverters, Delta PLCHot melt glue
Packaging & Shipping




Why Choose Us

 Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients’ special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging



Company Information

 1543914502(1)

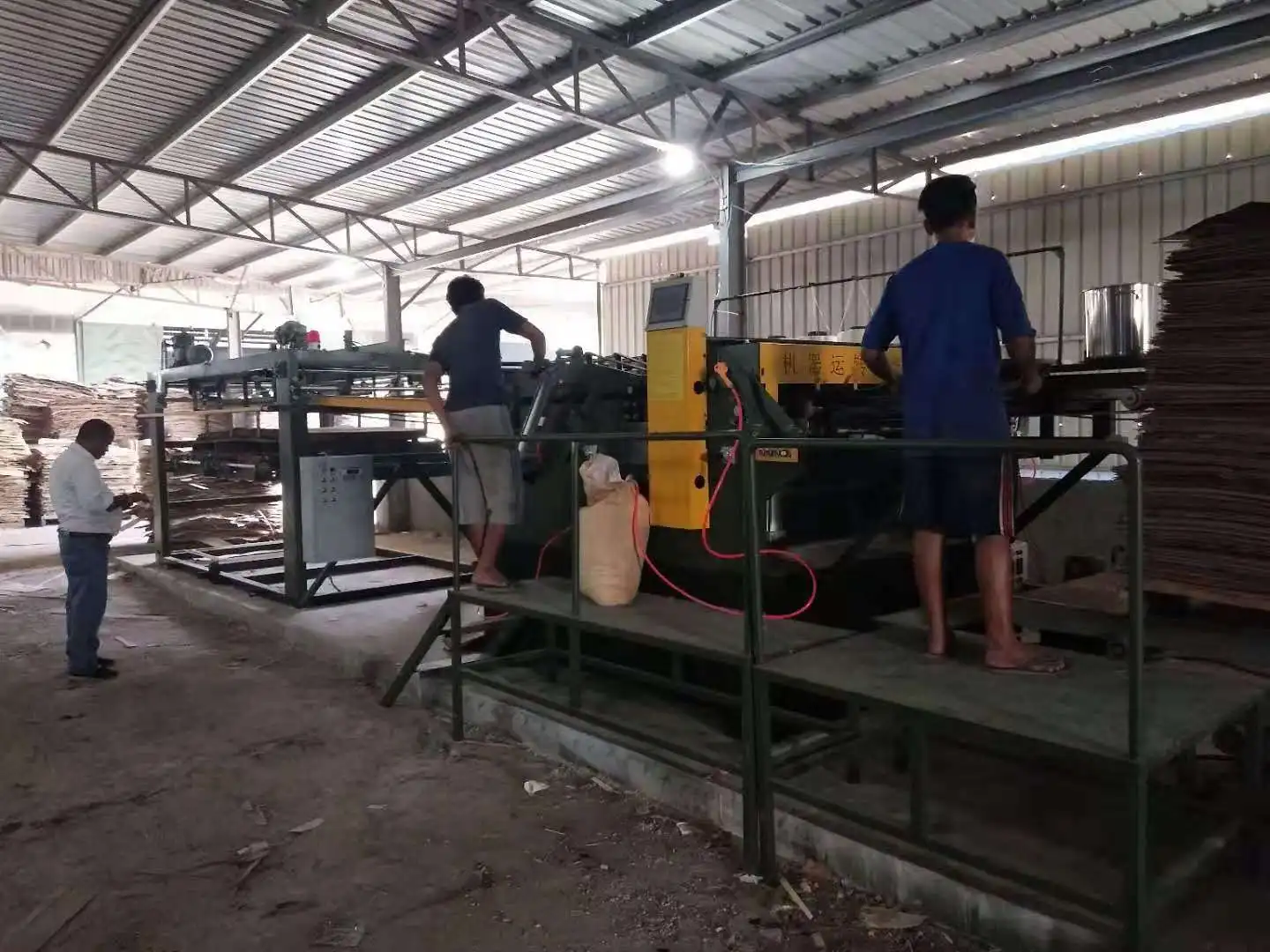

Customer Visit

.png



FAQ

 1. All kinds of mold can be made by customer's requirements

2. All price are based on FOB, QINGDAO, China

3. Payment: by T/T 30% down payment, 70% upon machinery completion.

4. Delivery: After finishing all the payment


5. All the parameters above just for reference, for they are updating all the time


6. Package: Standard packing

7. Warranty: All the machine enjoys one year’s warranty, in this period.

Any problems of machine, please feel free to contact us. We will try our best to make it.
